ARP 235-4113 BBC Head Stud Kit 6pt

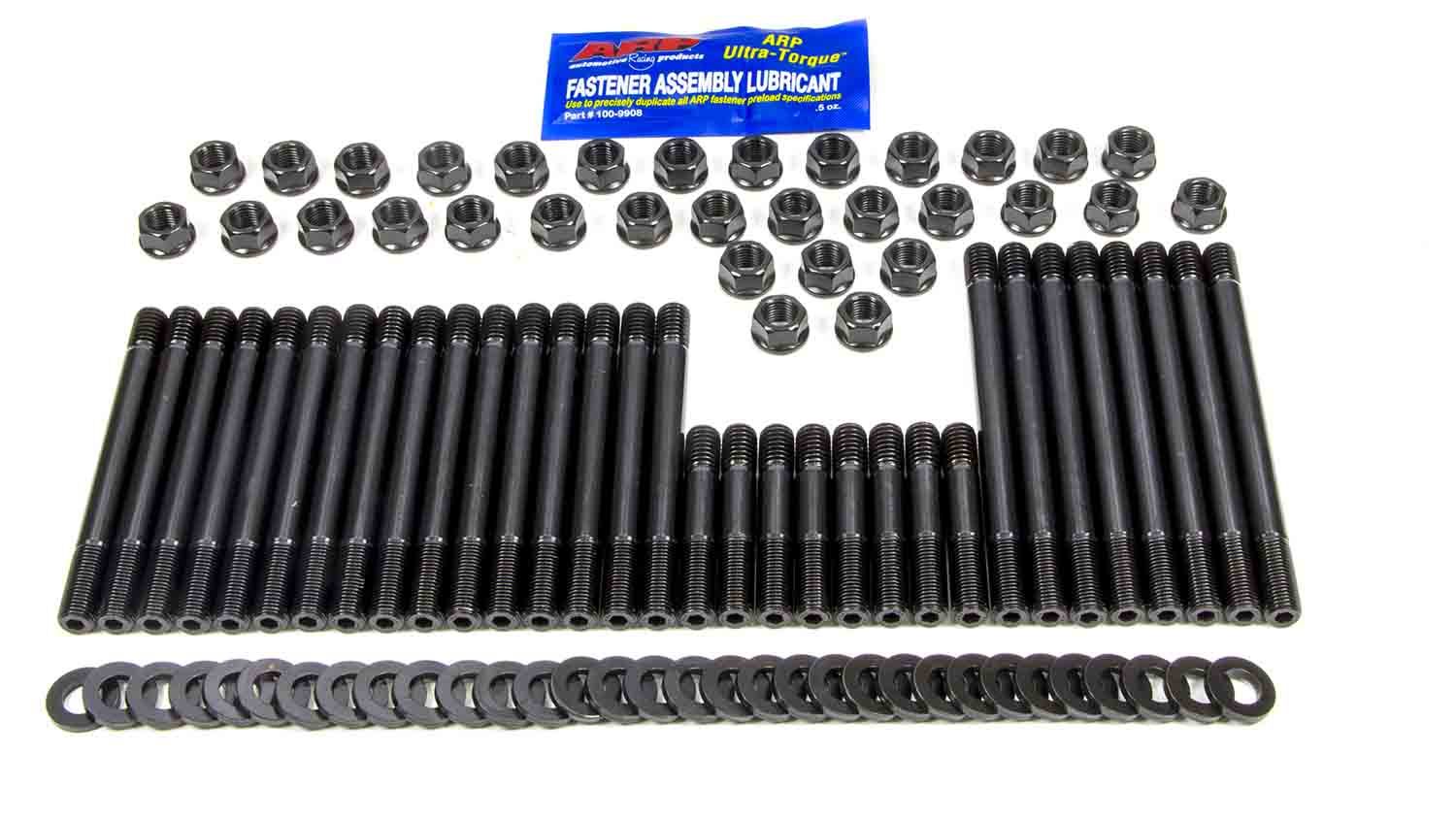

This ARP 235-4113 BBC Head Stud Kit is for 454-502 engines with Cast Iron OEM heads, Mark V/VI crate with Dart engines, AFR or World Products Merlin heads. This set comes complete with hex nuts and hardened washers. These studs are manufactured from 8740 Chromoly Steel, heat-treated in-house to 190,000 psi tensile strength, and thread rolled after heat-treat to create a fastener that has threads 2000% stronger than others!
ARP 235-4113 BBC Head Stud Kit Fits:
- 454-502 engines with Cast Iron OEM heads
- Mark V/VI crate with Dart
- AFR or World Products Merlin heads
STUDS vs. BOLTS
Virtually every top professional engine builder relies on ARP head studs for their all-out competition powerplants, and for good reason!
Here’s why: when you use bolts to secure the head, the fastener is actually being “twisted” while it’s being torqued to the proper reading. Accordingly, the bolt is reacting to two different forces simultaneously.
Studs also provide more accurate and consistent torque loading. Using studs ensures easier engine assembly, and proper alignment of both the cylinder head and gasket.
Install a stud in a “relaxed” mode – never crank it in tightly using a jammed nut. Always install the stud hand tight! Then, when applying torque to the nut, the stud will stretch only on the vertical axis.
Original: $192.99
-65%$192.99
$67.55Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This ARP 235-4113 BBC Head Stud Kit is for 454-502 engines with Cast Iron OEM heads, Mark V/VI crate with Dart engines, AFR or World Products Merlin heads. This set comes complete with hex nuts and hardened washers. These studs are manufactured from 8740 Chromoly Steel, heat-treated in-house to 190,000 psi tensile strength, and thread rolled after heat-treat to create a fastener that has threads 2000% stronger than others!
ARP 235-4113 BBC Head Stud Kit Fits:
- 454-502 engines with Cast Iron OEM heads
- Mark V/VI crate with Dart
- AFR or World Products Merlin heads
STUDS vs. BOLTS
Virtually every top professional engine builder relies on ARP head studs for their all-out competition powerplants, and for good reason!
Here’s why: when you use bolts to secure the head, the fastener is actually being “twisted” while it’s being torqued to the proper reading. Accordingly, the bolt is reacting to two different forces simultaneously.
Studs also provide more accurate and consistent torque loading. Using studs ensures easier engine assembly, and proper alignment of both the cylinder head and gasket.
Install a stud in a “relaxed” mode – never crank it in tightly using a jammed nut. Always install the stud hand tight! Then, when applying torque to the nut, the stud will stretch only on the vertical axis.
