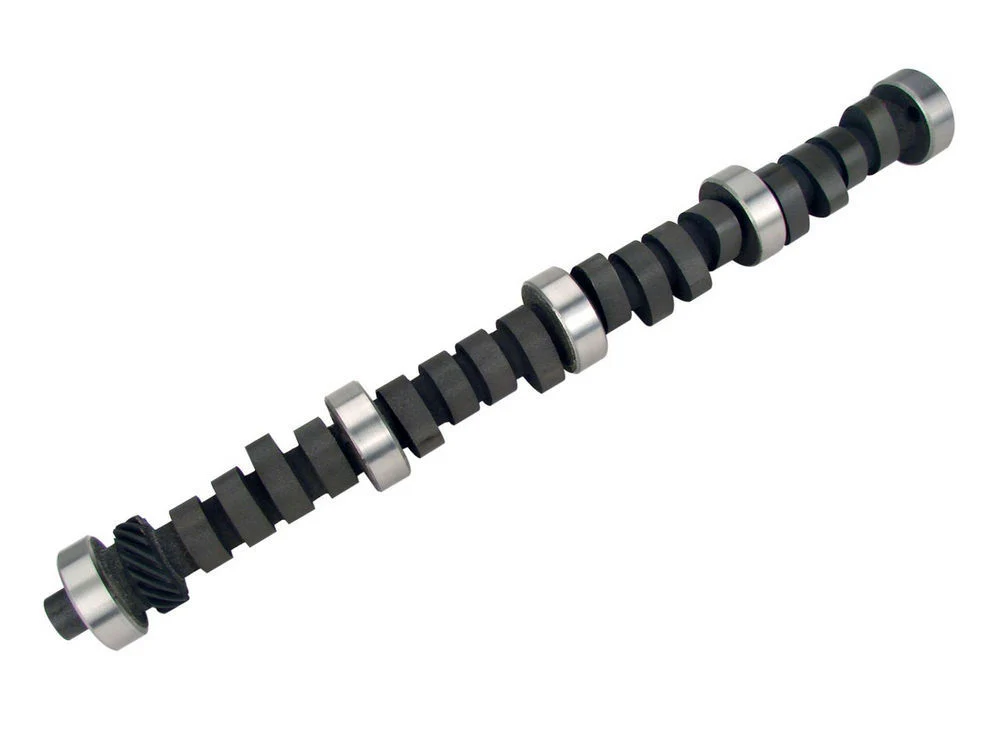

Comp Cams 31-242-3 SBF Xtreme Energy Hydraulic Flat Tappet Camshaft XE268H

This Comp Cams 31-242-3 SBF XE268H Xtreme Energy Hydraulic Flat Tappet Camshaft fits the 221-302 Small Block Ford from 1963-1995. Comp designed this cam for street/strip use, and it is great for street machines. A 9.0:1 or higher compression ratio and a 2000+ stall speed torque converter are highly recommended.

Comp Cams 31-242-3 SBF XE268H Xtreme Energy Hydraulic Flat Tappet Camshaft Specs:

• For 221-302 cubic inch Small Block Ford engines from 1963-1995
• Stock (O.E.) valve springs can NOT be used.
• Basic RPM Range: 1600 to 5800
• Valve Lift Intake: .509
• Valve Lift Exhaust: .512
• Advertised Intake Duration: 268
• Advertised Exhaust Duration: 280
• Intake Duration at .050”: 224
• Exhaust Duration at .050”: 230
• Lobe Separation: 110
• Intake Centerline: 106
• Firing Order: 1-3-7-2-6-5-4-8
• Made in the USA

Comp Cams designed this Hydraulic Flat Tappet camshaft for high performance on the street and drag strip.

Comp Cams –The Absolute Leader In Valve Train Technology!
