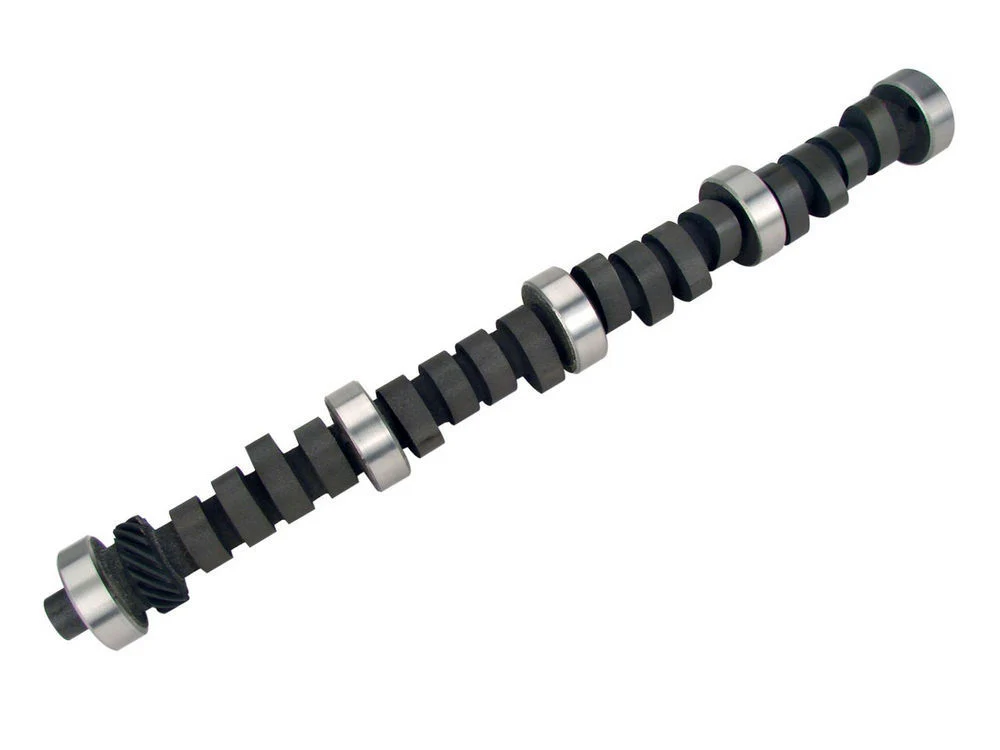

Comp Cams 31-246-3 SBF Xtreme Energy Hydraulic Flat Tappet Camshaft XE274H

This Comp Cams 31-246-3 SBF XE274H Xtreme Energy Hydraulic Flat Tappet Camshaft fits the 221-302 Small Block Ford from 1963-1995. Comp designed this cam for street/strip use, and it features very strong torque and throttle response. A 9.0:1 or higher compression ratio and a 2200+ stall speed torque converter are highly recommended.

Comp Cams 31-246-3 SBF XE274H Xtreme Energy Hydraulic Flat Tappet Camshaft Specs:

• For 221-302 cubic inch Small Block Ford engines from 1963-1995
• Stock (O.E.) valve springs can NOT be used.
• Basic RPM Range: 1800 to 6000
• Valve Lift Intake: .520
• Valve Lift Exhaust: .523
• Advertised Intake Duration: 274
• Advertised Exhaust Duration: 286
• Intake Duration at .050”: 230
• Exhaust Duration at .050”: 236
• Lobe Separation: 110
• Firing Order: 1-5-4-2-6-3-7-8
• Made in the USA

Comp Cams designed this Hydraulic Flat Tappet camshaft for high performance on the street and drag strip.

Comp Cams –The Absolute Leader In Valve Train Technology!
